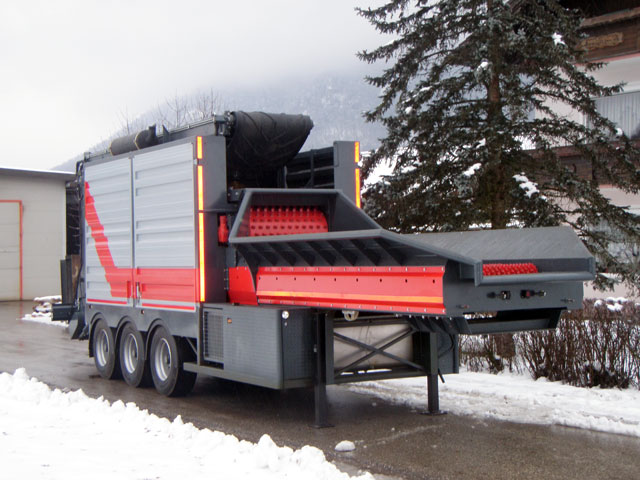

BBT 1100 - powerful chipper on a 4-axle truck chassis or on tandem hook lift system
The BBT 1100 series is a powerful, robust, easy to use chipper, which can be supplied either directly on a tandem chassis, a 4-axle truck, or on a hook-lift system. The orientation of this type of machine is adjustable up to 40° to the left or right and you can choose between a 360° discharge chute or a dust-free 360° conveyor belt. Being a smaller version of the BBT 1500 the BBT 1100 series has correspondingly less weight, enabling it to be built it on 3-axis or on centre-axle trailer or on 2-axle semi-trailers.
This machine can also be run as a stationary unit powered by electric motors.
Specifications:
| Feed opening: | 1300 x 800 mm |
| Engine: | CAT C-18 776 hp |
| Capacity: | 18 litres |
| Cylinder: | straight-6 |
| Fuel consumption: | 38 litres / h |
| Rotor diameter: | 1100 mm |
| Number of blades: | 4 |
| Stem diameter: | softwood: 80 cm, hardwood: 40 cm (depending on version) |
| Chipping performance: | softwood: up to approx. 300 m³ chips per hour |
| Chip size: | G 30 to G 80 |
| Chip delivery: | 360 ° rotatable discharge pipe or 360 ° rotatable, dust-free conveyor |
| Discharge height: | 4.5 m |
| Time required for blade change: | 20 min approx. |
| Weight: | approx. 15 t without truck and crane |
| Platform transport types: | On trucks rigid or swivel, centre-axle trailer rigid or swivel and semi-trailers rigid or swivel |
This machine can also be run as a stationary unit with electric motors.
